Concealed Overhead Door Closer FHC FHCSM105NH0 – Medium-Duty 105° No Hold-Open 1/2-Inch Spindle

Special order. Stock is confirmed after checkout. Email customerservice@emergencydoorandglassrepair.com if you are unsure this is the correct part. Orders over $5,000 can be paid by ACH; other orders use card checkout.

Commercial storefront door closer replacement body for aluminum entrance headers. Medium-duty 105° no-hold-open concealed overhead closer with a 1/2-inch spindle.

Manufacturer identification

• Manufacturer: FHC (Frameless Hardware Company)
• Official manufacturer part number: FHCSM105NH0
• FHC compare-to number: 20101M01
• Product category: Concealed storefront / overhead concealed closer (OHCC) body
• Unit: Each
• Case quantity: 4 (manufacturer listing)

Verified specifications

• Door type: Overhead concealed closer body for commercial aluminum storefront / entrance headers
• Door width range (FHC OHCC installation manual for this body family): minimum 30 in; maximum 48 in
• Door weight range (same family manual): maximum 250 lb interior / 200 lb exterior, including attached hardware
• Spindle type/size: 1/2-inch standard spindle (FHCSM series)
• Hold-open or non-hold-open: No hold-open
• Opening degree: 105°
• Handing: Not stated on the FHC product page. Family manual describes these bodies as non-handed; confirm in the field.
• Finish: Not stated on the FHC product page
• Listed product weight on FHC page: 9.000000 (treat as unverified until packed)
• Spring: Fixed medium-duty

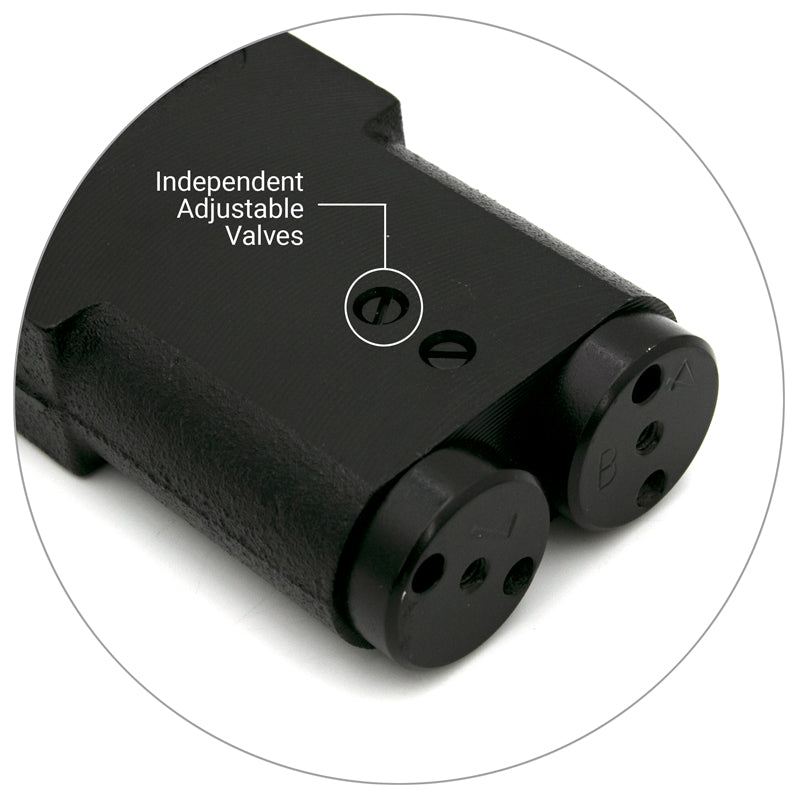

• Controls: Two valves for closing speed and latching speed

Included components

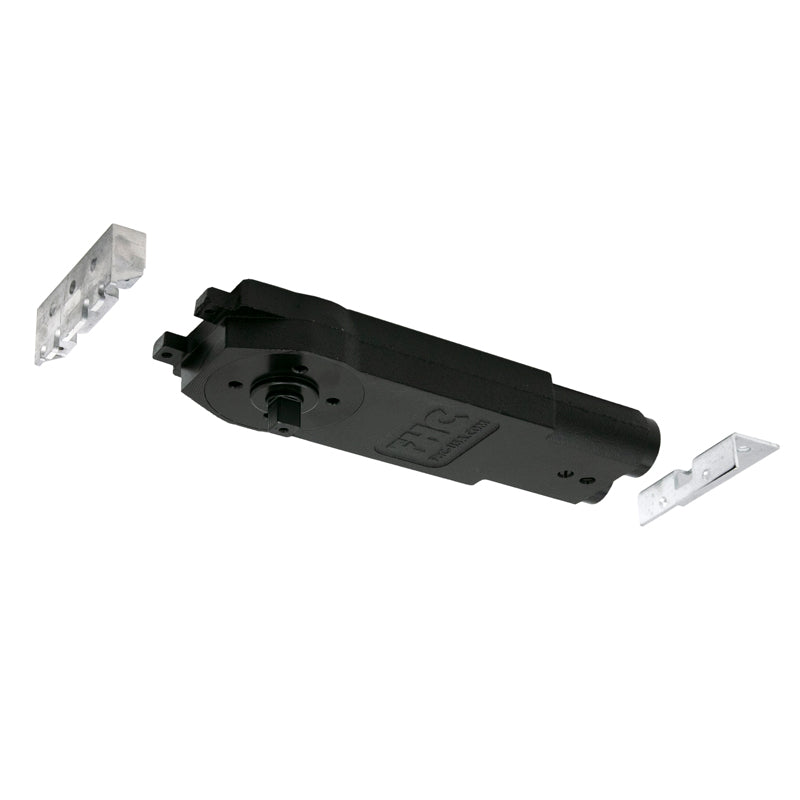

• OHCC closer body
• Mounting clips (included in package per FHC listing)

Optional / sold separately

• Top arms (side-load, end-load, offset)
• Bottom center pivot or offset pivot
• Cover plate / snap-in header cover
• Auxiliary / surface stops
• Los Angeles-area installation — request a quote; not included

Installation requirements

• Concealed in an aluminum header or transom. Field verification of header pocket, spindle length, arm type, pivot type, and door weight is required.
• FHC markets this series as interchangeable with most spring-powered closers. That is a manufacturer marketing phrase, not a fit guarantee from this shop.
• Nationwide product sales do not include installation.

Warranty terms

Manufacturer warranty is not stated on the FHC product page reviewed August 16, 2026. Do not assume coverage.

Return restrictions

Opened or installed closers are likely non-returnable.

Shipping

• Shipping weight: FHC lists 9.000000; not independently verified
• Shipping is calculated separately. This listing does not include free shipping.

Compatibility warning

Commercial door hardware is application-specific. Verify manufacturer, model, dimensions, handing, spindle, door type, and existing installation before ordering. If uncertain, text clear photos and measurements to 310-933-2600. Identification assistance does not replace field verification.

Need help?

• Text photos for identification: 310-933-2600
• Email installation quotes and order questions to customerservice@emergencydoorandglassrepair.com. Replies are by email only.

California Proposition 65 warning appears on the FHC product page.
