Concealed Overhead Door Closer FHC FHCSM90H0 – Medium-Duty 90° Hold-Open 1/2-Inch Spindle

Special order. Stock is confirmed after checkout. Email customerservice@emergencydoorandglassrepair.com if you are unsure this is the correct part. Orders over $5,000 can be paid by ACH; other orders use card checkout.

Commercial storefront door closer replacement body for aluminum entrance headers. Medium-duty 90° hold-open concealed overhead closer with a 1/2-inch spindle.

Manufacturer identification

• Manufacturer: FHC (Frameless Hardware Company)
• Official manufacturer part number: FHCSM90H0
• FHC compare-to number: 20101M04
• Product category: Concealed storefront / overhead concealed closer (OHCC) body
• Unit: Each
• Case quantity: 4 (manufacturer listing)

Verified specifications

• Door type: Overhead concealed closer body for commercial aluminum storefront / entrance headers
• Door width range (FHC OHCC installation manual for this body family): minimum 30 in; maximum 48 in
• Door weight range (same family manual): maximum 250 lb interior / 200 lb exterior, including attached hardware
• Spindle type/size: 1/2-inch standard spindle (FHCSM series)
• Hold-open or non-hold-open: Hold-open
• Opening degree: 90°
• Handing: Not stated on the FHC product page. Family manual describes these bodies as non-handed; confirm in the field.
• Finish: Not stated on the FHC product page
• Listed product weight on FHC page: 0.000000 (placeholder, not a verified ship weight)
• Spring: Fixed medium-duty

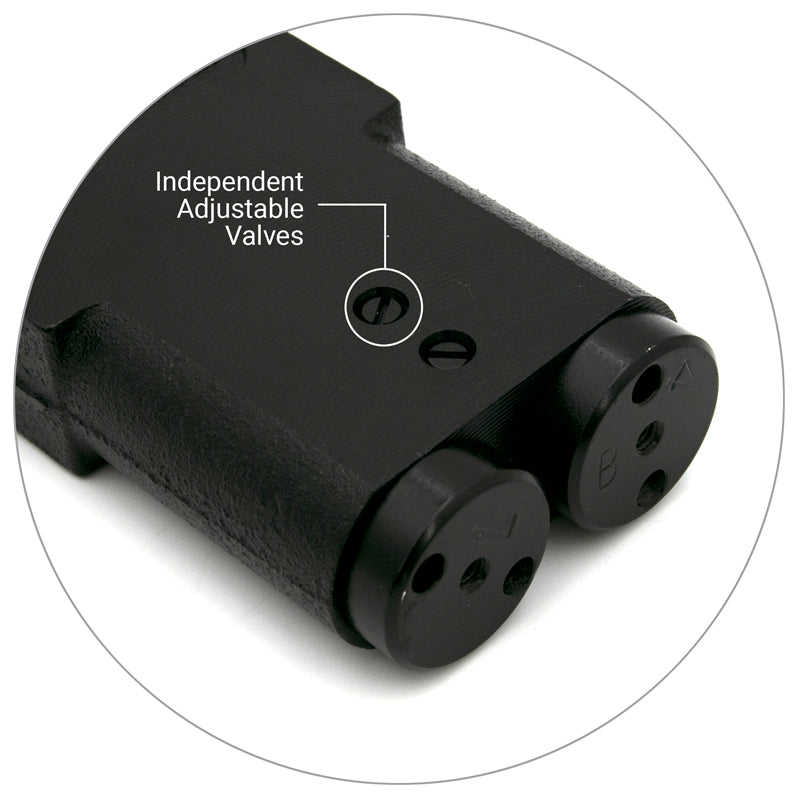

• Controls: Two valves for closing speed and latching speed

Included components

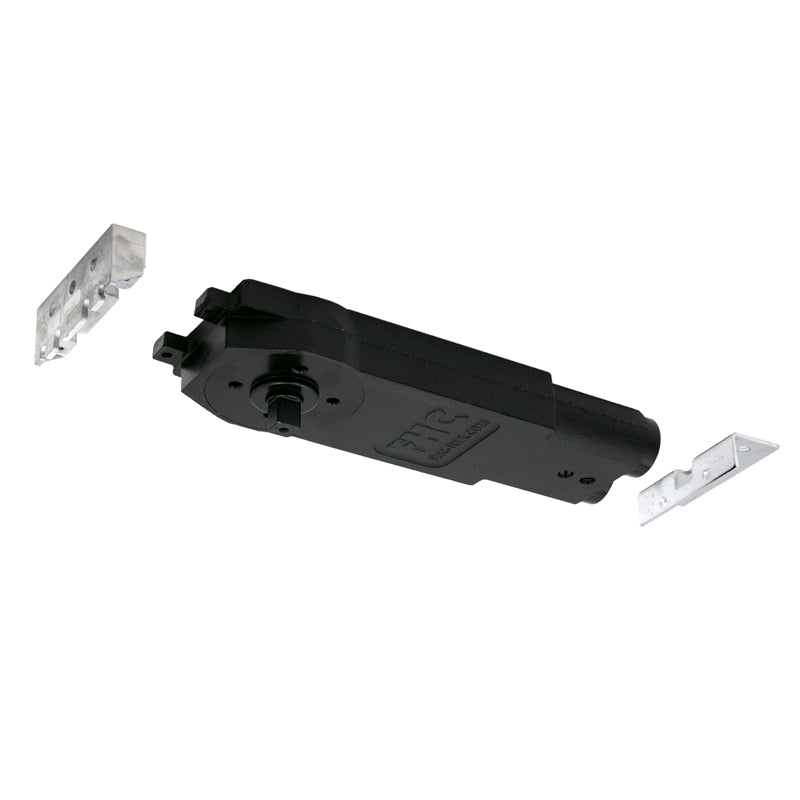

• OHCC closer body
• Mounting clips (included in package per FHC listing)

Optional / sold separately

• Top arms, bottom pivots, cover plates, auxiliary stops
• Los Angeles-area installation — request a quote; not included

Installation requirements

• Concealed in an aluminum header or transom. Field verification required.
• FHC markets this series as interchangeable with most spring-powered closers. That is a manufacturer marketing phrase, not a fit guarantee from this shop.

Warranty terms

Manufacturer warranty is not stated on the FHC product page reviewed August 16, 2026.

Return restrictions

Opened or installed closers are likely non-returnable.

Shipping

• Shipping weight: not stated (FHC lists 0.000000)
• Shipping is calculated separately. This listing does not include free shipping.

Compatibility warning

Commercial door hardware is application-specific. Verify manufacturer, model, dimensions, handing, spindle, door type, and existing installation before ordering. If uncertain, text clear photos and measurements to 310-933-2600. Identification assistance does not replace field verification.

Need help?

• Text photos for identification: 310-933-2600
• Email installation quotes and order questions to customerservice@emergencydoorandglassrepair.com. Replies are by email only.

California Proposition 65 warning appears on the FHC product page.
