Door Sweep Pemko 315CN36 – 36-Inch Clear Anodized Neoprene Insert

Special order. Stock is confirmed after checkout. Email help@sosstorefrontsupply.com if you are unsure this is the correct part. Orders over $5,000 can be paid by ACH; other orders use card checkout.

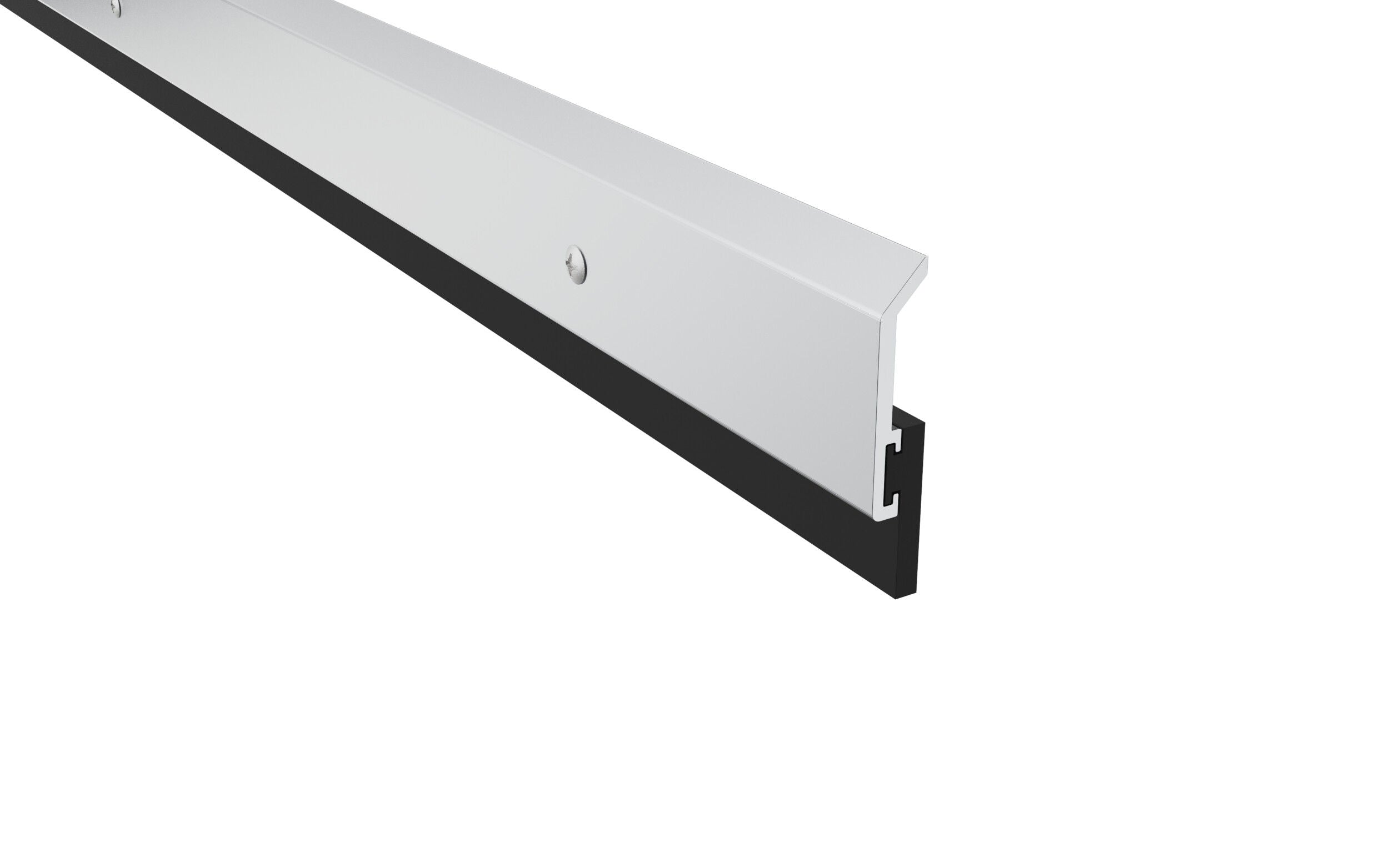

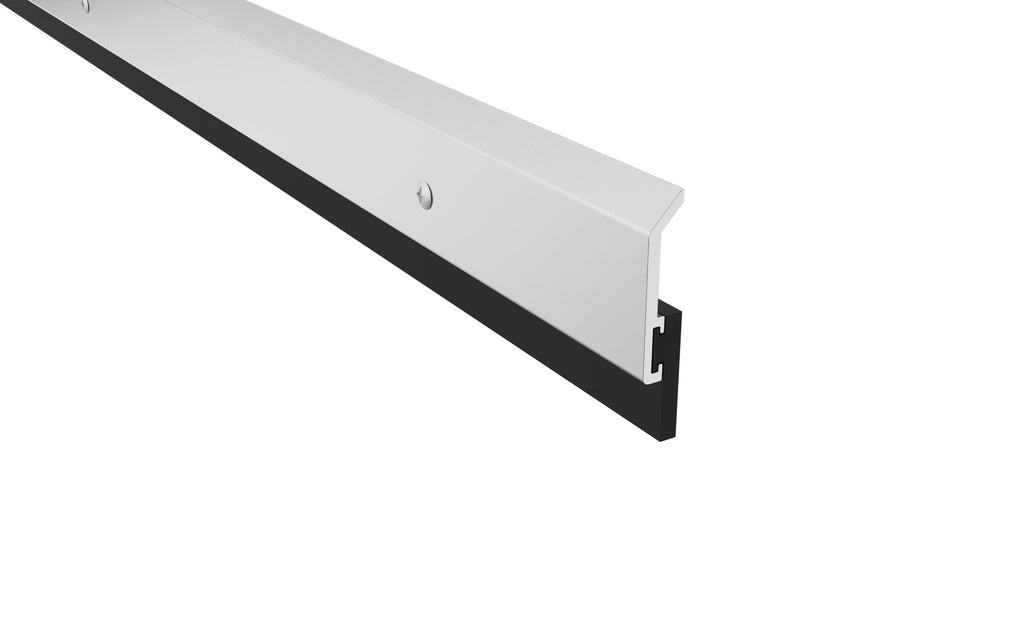

36-inch commercial door bottom sweep. Clear anodized aluminum housing with a black insert. Pemko’s 315 series page describes a neoprene extrusion. Some distributor catalogs also print EPDM for the same 315CN insert. Titles for 315CN36 and 315CN42 now match that Pemko wording. Confirm the packed insert before sale.

Manufacturer identification

• Manufacturer: Pemko (ASSA ABLOY)
• Official manufacturer part number: 315CN36 (also listed as 315CN 36)
• Series: 315 / 315_N surface plate door sweep
• Product category: Door sweeps and weatherstripping
• Unit: Each

Verified specifications

• Door type: Architectural / commercial door bottom. Confirm door width and bottom clearance before ordering.
• Length: 36 in (some distributor listings show 36.75 in overall)
• Finish: Clear anodized aluminum (Pemko finish code C / CN)

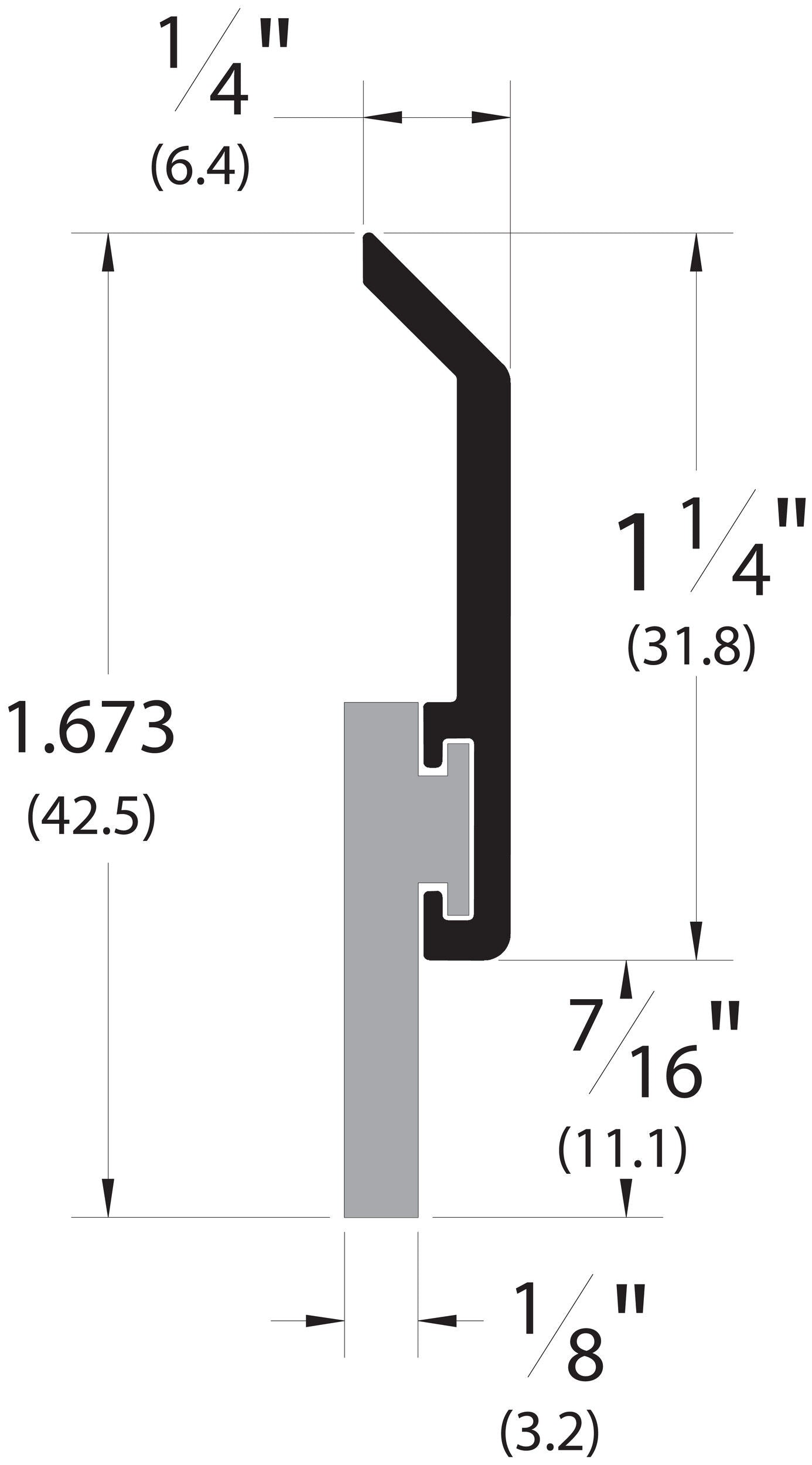

• Insert: Pemko 315 series page — neoprene extrusion, about 7/16 in. Some catalogs also say EPDM.
• Housing: 6063-T6 aluminum (distributor listing)
• Door width range: sized for a 36-inch door; field-cut only if the manufacturer cutting rules are confirmed
• Door weight range: not applicable (sweep, not a closer)
• Spindle type/size: not applicable
• Hold-open or non-hold-open: not applicable
• Opening degree: not applicable
• Handing: not handed
• Distributor listed dimensions vary. Confirm flange and projection on the packed part before install.

Included components

• Sweep assembly
• Mounting screws (Pemko series description and DK Hardware both state fasteners / sheet-metal screws are included)

Optional / sold separately

• Matching threshold or rain drip
• Dark bronze 315DN36 if the existing hardware is bronze
• Los Angeles-area installation — request a quote; not included

Installation requirements

• Surface-mounted at the door bottom. Confirm threshold height, floor clearance, and door thickness.
• This is not an automatic door bottom.

Warranty terms

Official Pemko product page reviewed August 16, 2026 did not state a warranty term in readable text. DK Hardware lists a limited 5-year warranty on this SKU. Treat warranty as unverified until Pemko documentation is on file.

Return restrictions

Cut or installed sweeps are likely non-returnable.

Shipping

• One distributor lists about 1.05 lb. Not independently verified.
• Shipping is calculated separately. This listing does not include free shipping.

Compatibility warning

Commercial door hardware is application-specific. Verify manufacturer, model, dimensions, handing, spindle, door type, and existing installation before ordering. If uncertain, text clear photos and measurements to 310-933-2600. Identification assistance does not replace field verification.
